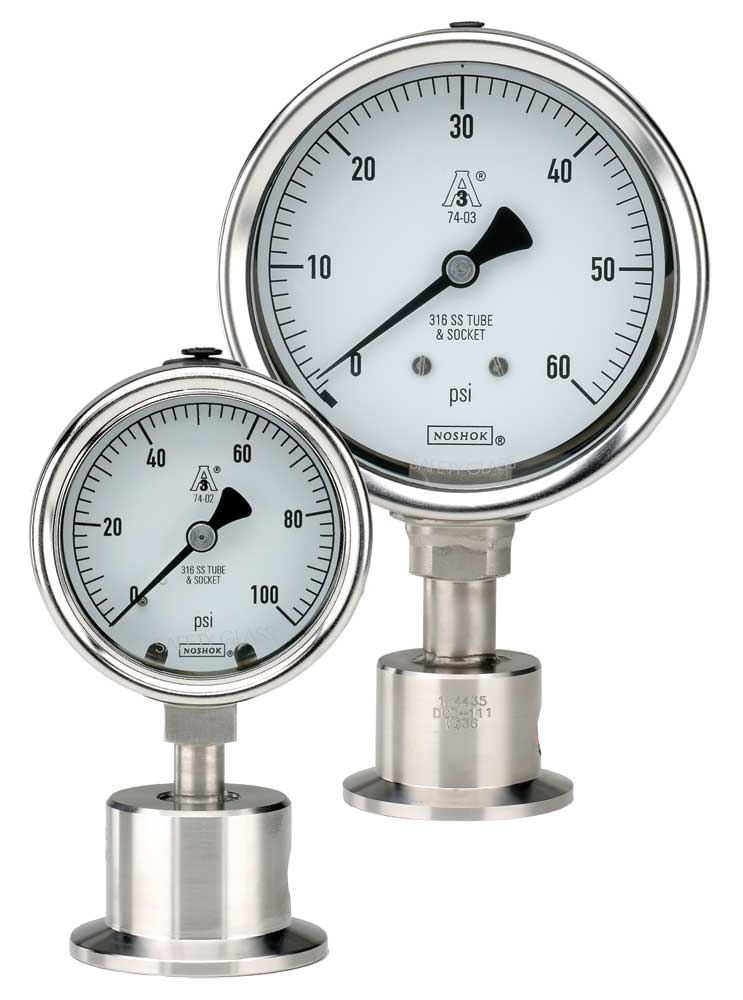

10 Series Heavy-Duty Sanitary Pressure Gauges



3 year warranty

  • 1-1/2" and 2" clamp, fillable dry or liquid-filled gauge
  • Ranges from -30 inHg to 0 psig through 0 psig to 600 psig
  • 2-1/2" and 4" gauge sizes
  • Electropolished stainless steel case
  • 316 stainless steel wetted parts
  • Meets current standards for 3A and ASME BPE-2009
  • C.I.P, S.I.P and Autoclave (only dry gauges are recommended
    for Autoclave)
Dimensions Tech Manuals Options Print Catalog Page

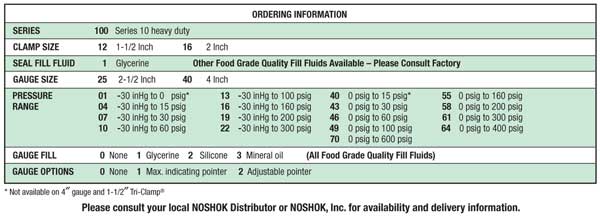

ORDERING INFORMATION

SERIES 100 10 Series heavy-duty, bottom connected 101 10 Series heavy-duty, back connected
CLAMP SIZES 12 1-1/2" 16 2"
SEAL FILL FLUID 1 Glycerin Other food grade quality fill fluids available - please consult factory
GAUGE SIZES 25 2-1/2" 40 4"
PRESSURE RANGES 01 -30 inHg to 0 psig* 16 -30 inHg to 160 psig 46 0 psig to 60 psig 64 0 psig to 400 psig
04 -30 inHg to 15 psig 19 -30 inHg to 200 psig 49 0 psig to 100 psig 70 0 psig to 600 psig
07 -30 inHg to 30 psig 22 -30 inHg to 300 psig 55 0 psig to 160 psig
10 -30 inHg to 60 psig 40 0 psig to 15 psig* 58 0 psig to 200 psig
13 -30 inHg to 100 psig 43 0 psig to 30 psig 61 0 psig to 300 psig
GAUGE FILLS 0 None 1 Glycerin 2 Silicone 3 Mineral oil
(All food grade quality fill fluids)
GAUGE OPTIONS 0 None 1 Max. Indicating Pointer 2 Adjustable Pointer**

   * Not available on 4" gauge and 1-1/2" ASME-BPE Sanitary Clamp
   ** Not available on 2-1/2" gauge
   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
