10 Series Fractional Sanitary Pressure Gauges
Product Specifications



NOSHOK pressure transmitters or transducers are not to be used in heat sterilization systems
as stated in 3A Standard 74-03 paragraph D10.1.2


Diaphragm seal must be installed facing downward or in a vertical position for drainability.
Do not install diaphragm seal facing in an upward position.

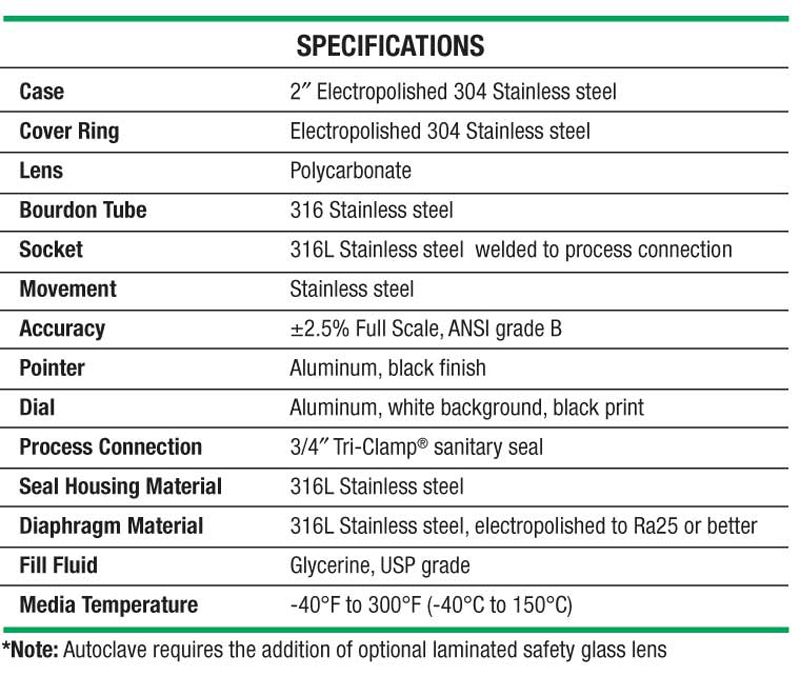

SPECIFICATIONS
Pressure ranges 0 psig to 30 psig through 0 psig to 600 psig
Accuracy ±2.5% full scale
Temperature ranges Media -40 °F to 300 °F (-40 °C to 150 °C)
Ambient 25 °F to 140 °F (-4 °C to 60 °C)
Storage 25 °F to 140 °F (-4 °C to 60 °C)
Measuring element 316 stainless steel Bourdon tube
Connection 3/4" ASME-BPE Sanitary Clamp, 316L stainless steel
Diaphragm 316L stainless steel, electropolished to 32 μin Ra or better
Case 2" Electropolished 304 stainless steel
Cover ring Electropolished 304 stainless steel
Lens* Polycarbonate
Pointer Balanced aluminum, black finish
Dial Aluminum, white background, black print
Movement Stainless steel
Fill liquid Glycerin, USP Grade

          *Note: Autoclave requires the addition of optional laminated safety glass lens
