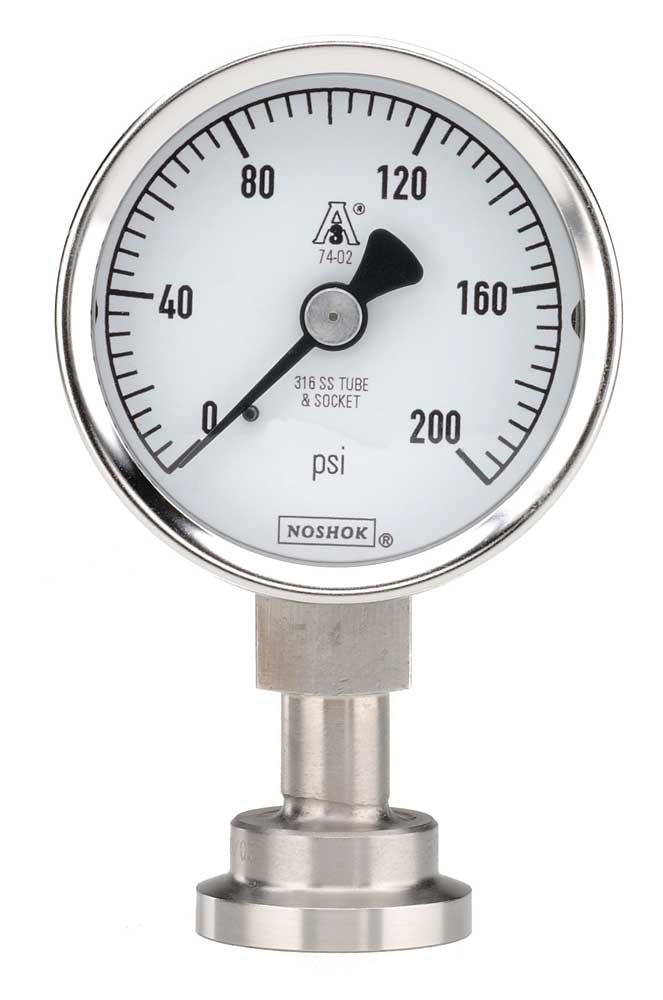

10 Series Fractional Sanitary Pressure Gauges



3 year warranty



  • 3/4" clamp, dry gauge
  • Ranges from 0 psig to 30 psig through 0 psig to 600 psig
  • 2" gauge size
  • Electropolished stainless steel case
  • 316 stainless steel wetted parts
  • Meets current standards for 3A and ASME BPE-2009
  • C.I.P, S.I.P and Autoclave (only dry gauges are recommended for Autoclave)



Dimensions Tech Manuals Print Catalog Page

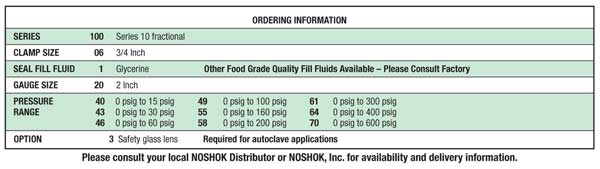

ORDERING INFORMATION

SERIES 100 10 Series fractional
CLAMP SIZE 06 3/4"
SEAL FILL FLUID 1 Glycerin Other food grade quality fill fluids available - please consult factory
GAUGE SIZE 20 2"
PRESSURE RANGES 43 0 psig to 30 psig 55 0 psig to 160 psig 64 0 psig to 400 psig
46 0 psig to 60 psig 58 0 psig to 200 psig 70 0 psig to 600 psig
49 0 psig to 100 psig 61 0 psig to 300 psig
OPTIONS 0 None 3 Safety Glass Lens (Required for Autoclave applications)

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
