Extreme High Pressure Instruments
NOSHOK provides a variety of measurement solutions designed specifically for extreme high pressure applications, such as water jet cutting, hydroforming, burst testing, high pressure filtration, high pressure/high torque tools, high pressure lubrication and high pressure pumping.
NOSHOK 400/500 SERIES Featuring a rugged stainless steel case and socket, and an open front design with blowout protection on the rear of the case, these gauges measure pressure ranges from 0-20,000 psig through 0-60,000 psig. Available in 4” and 6” case sizes. more... |
 |
NOSHOK 402/502 SERIES These gauges’ robust 6” design includes a solid front, safety case with blow-out back. They are engineered to measure pressure ranges from 0-80,000 psig through 0-100,000 psig. more... |
 |

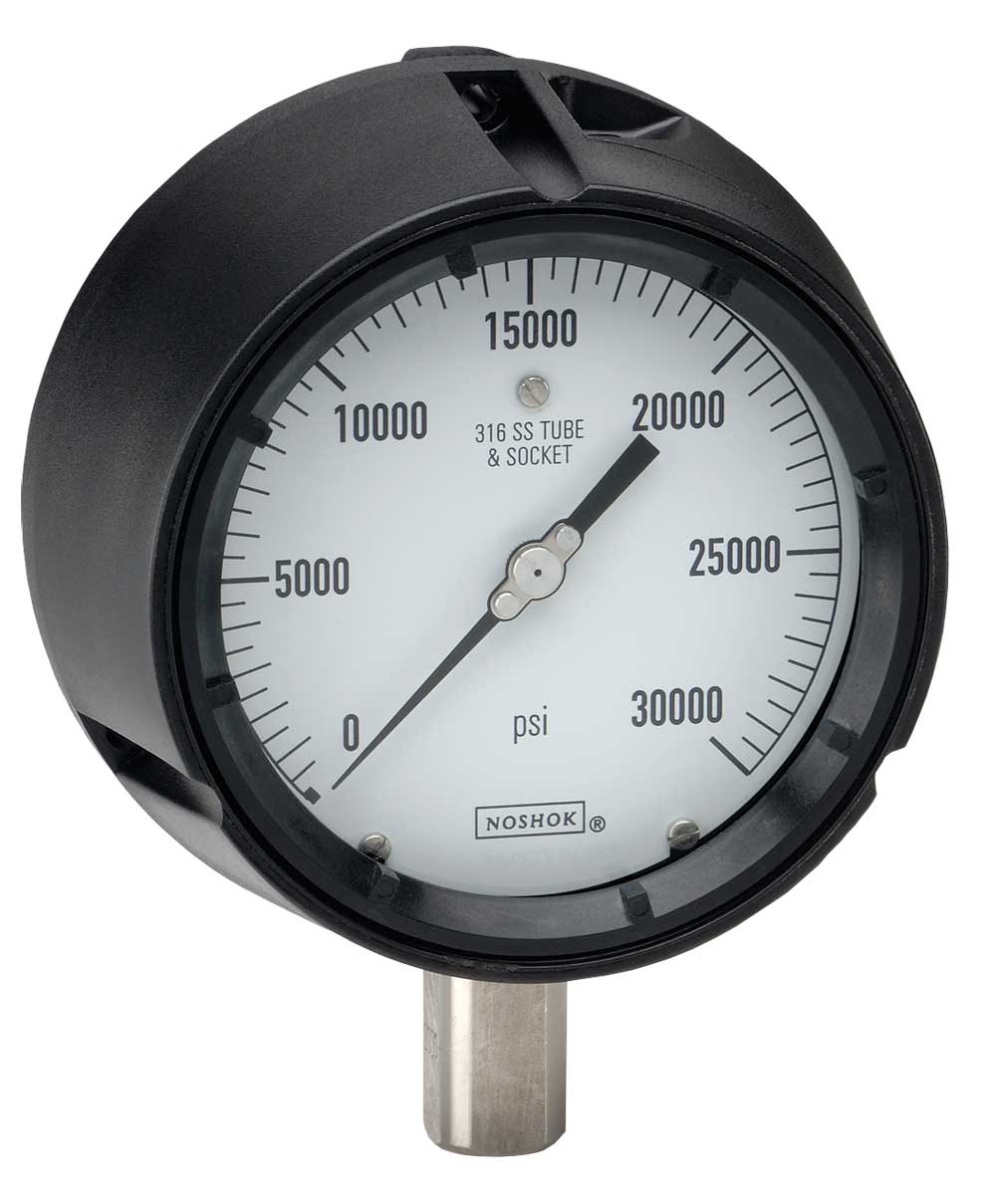

NOSHOK 740/760 SERIES With a 4-1/2” Phenolic Turret Safety Case, 740/760 Series gauges measure pressure ranges from 0-20,000 psig through 0-60,000 psig. They incorporate a rugged solid front, safety case and blow-out back. more... |
 |
NOSHOK 615 SERIES With a standard accuracy of +/-0.25% Full Scale BFSL, NOSHOK’s Extreme High Pressure Transducers provide highly precise measurement. Their robust design is engineered to measure pressure ranges from 0-20,000 psig through 0-145,000 psig, and features a standard 9/16”-18 UNF 3B High Pressure Process Connection. Available with 4-20mA Current or Voltage optional outputs (0-10 Vdc, 0-5 Vdc, etc.), and a full compliment of optional electrical connectors. more... |
 |
